Distribution transformers

Distribution transformers are normally located at a service drop, wires run from a utility pole or underground power lines to a customer’s premises. They are often used for the power supply of facilities outside settlements, such as isolated houses, farmyards or pumping stations at voltages below 30kV. UTTAM make three phase distribution transformers are available in stack core / wound core upto 160kVA and stack core upto 3000kVA. They are made available in aluminium / copper as per requirement. On demand higher rating can also be offered.

Key Features:

» Available in Stack core
» Available in Wound core as well as Stack core
» Modern manufacturing techniques ensuring quality of product
» Robust build designed to withstand electric impulses, thermal and dynamic stress
» Designs through Computer Aided Design (CAD) Software System
» Trouble free performance
» Customized design and specification demands

Specifications:
RatingsCRGO – Upto 3000 kVA (higher rating can also be offered) Amorphous – upto 160kVA
Applicable StandardsIS, REC, CBIP, IEC, ANSI, JIS, BS etc.
CoolingON AN
Insulating FluidEster Oil to specification
Frequency50 Hz, 60 Hz
Primary voltageUpto 33 kV
Secondary Voltage415, 433 V (Other Voltages as required)
Winding materialCopper (upto 3000 kVA) / Aluminium (upto 800 kVA)
Taping range± 5% in steps of 2.5% (Other tapings as required)

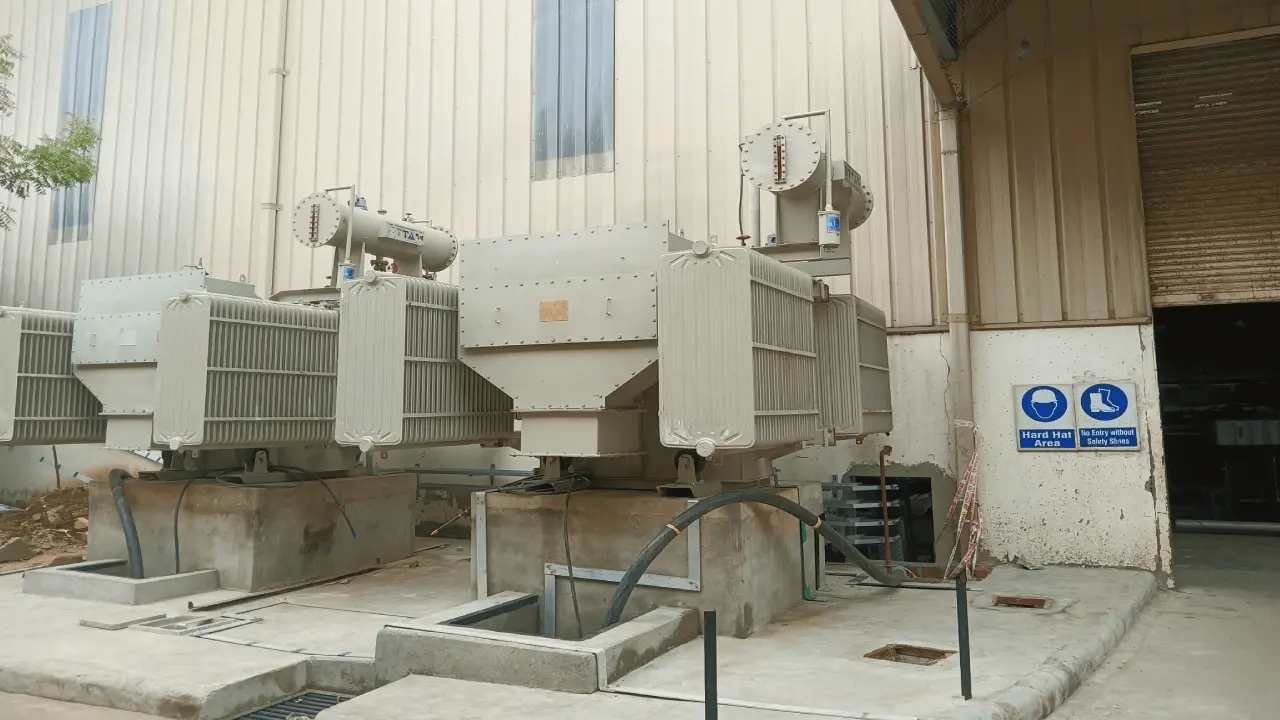

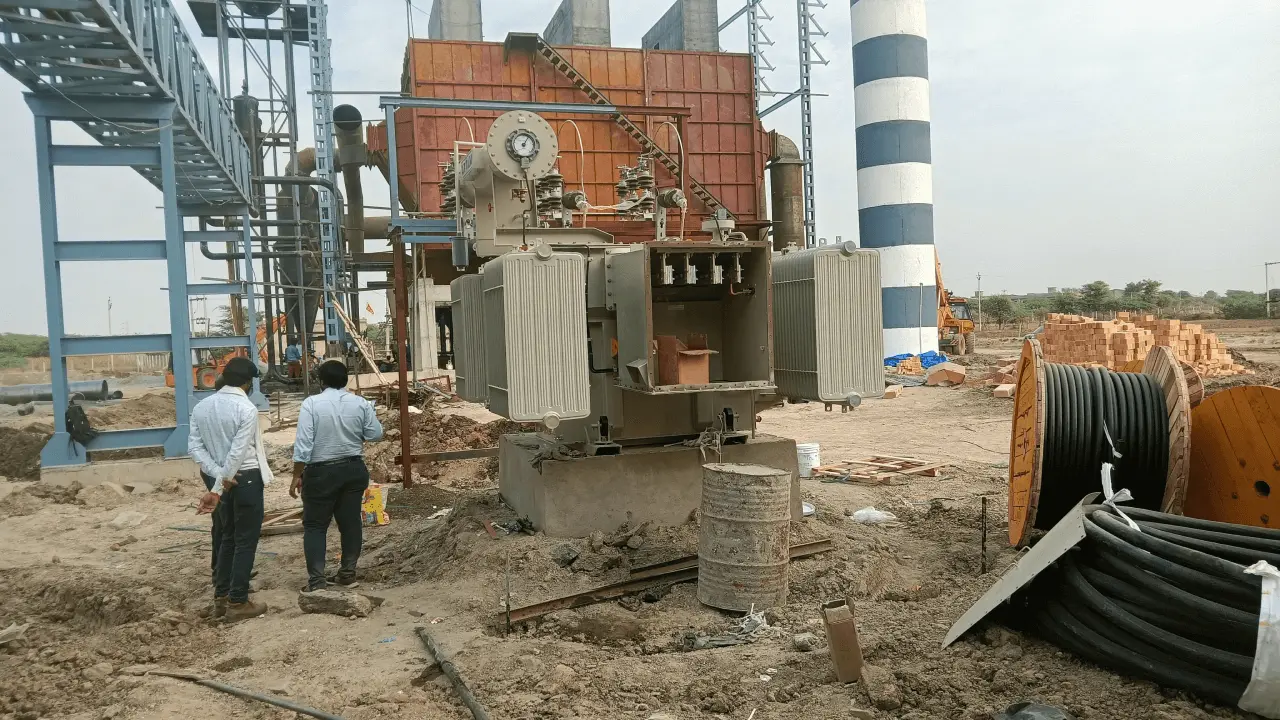

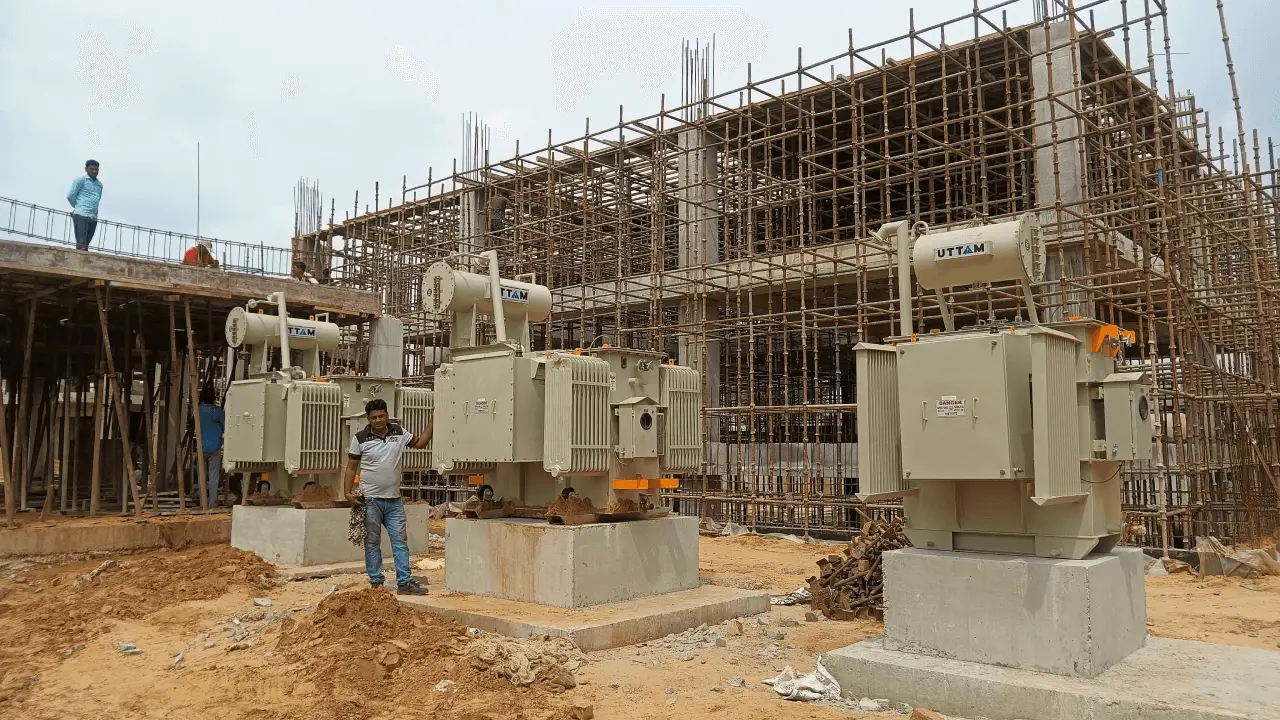

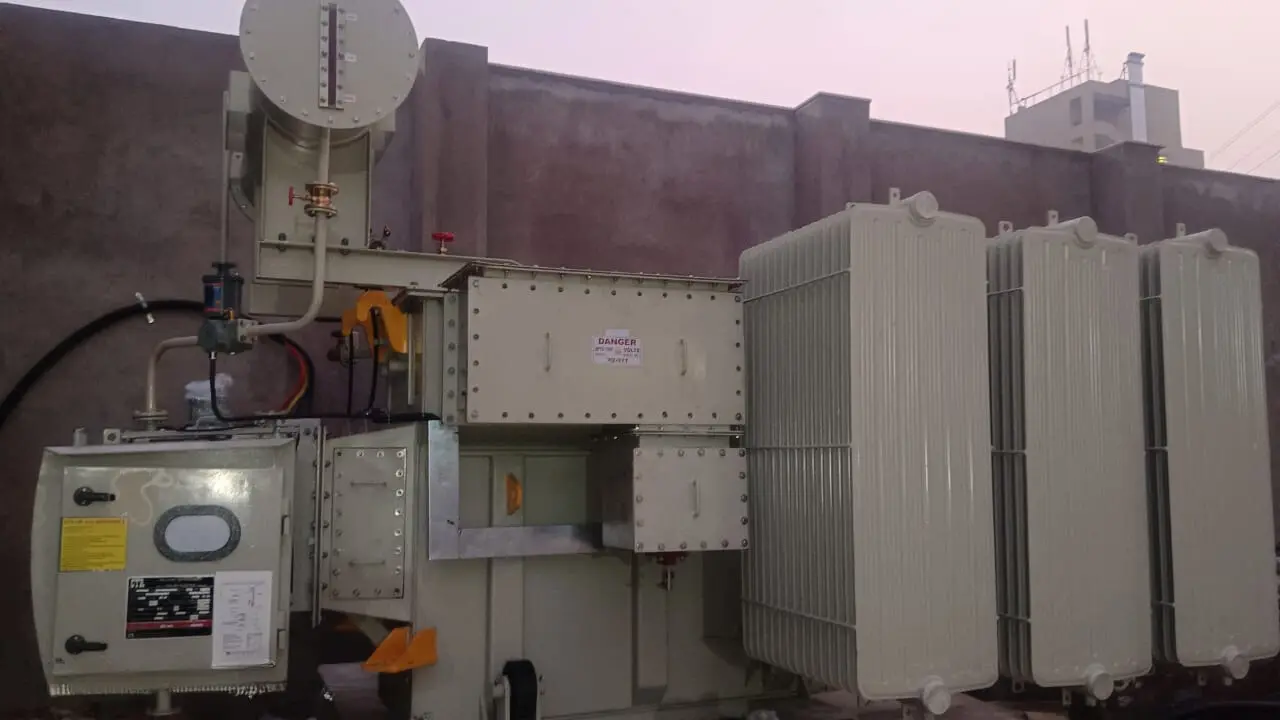

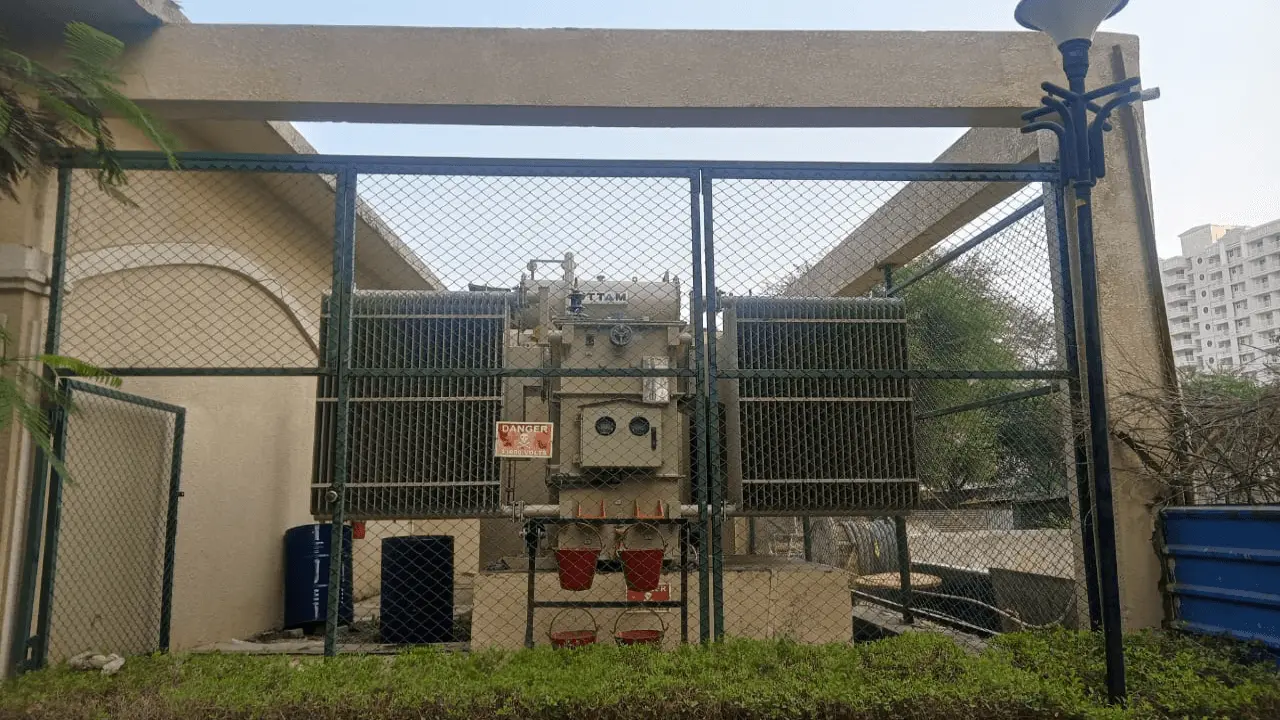

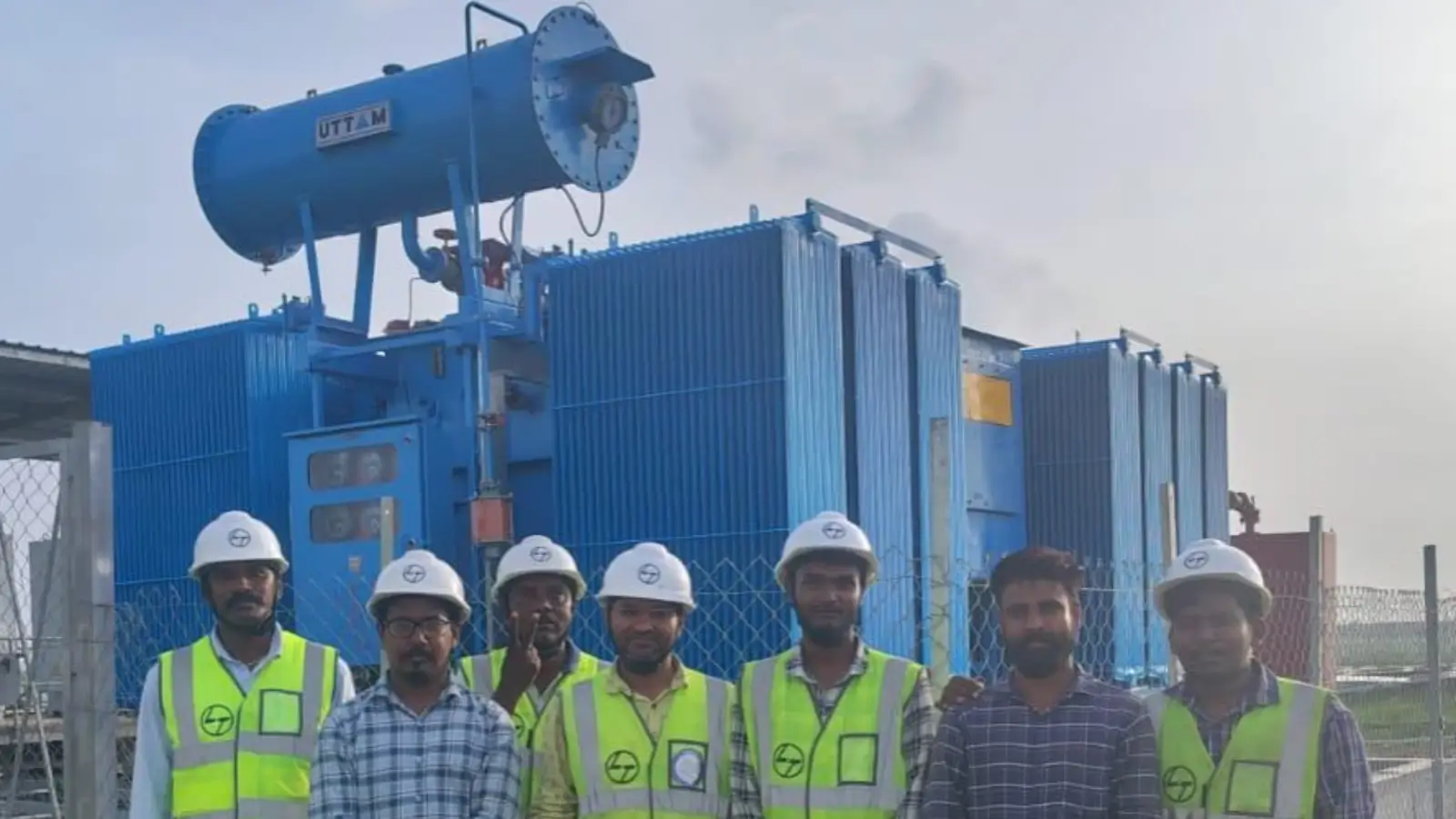

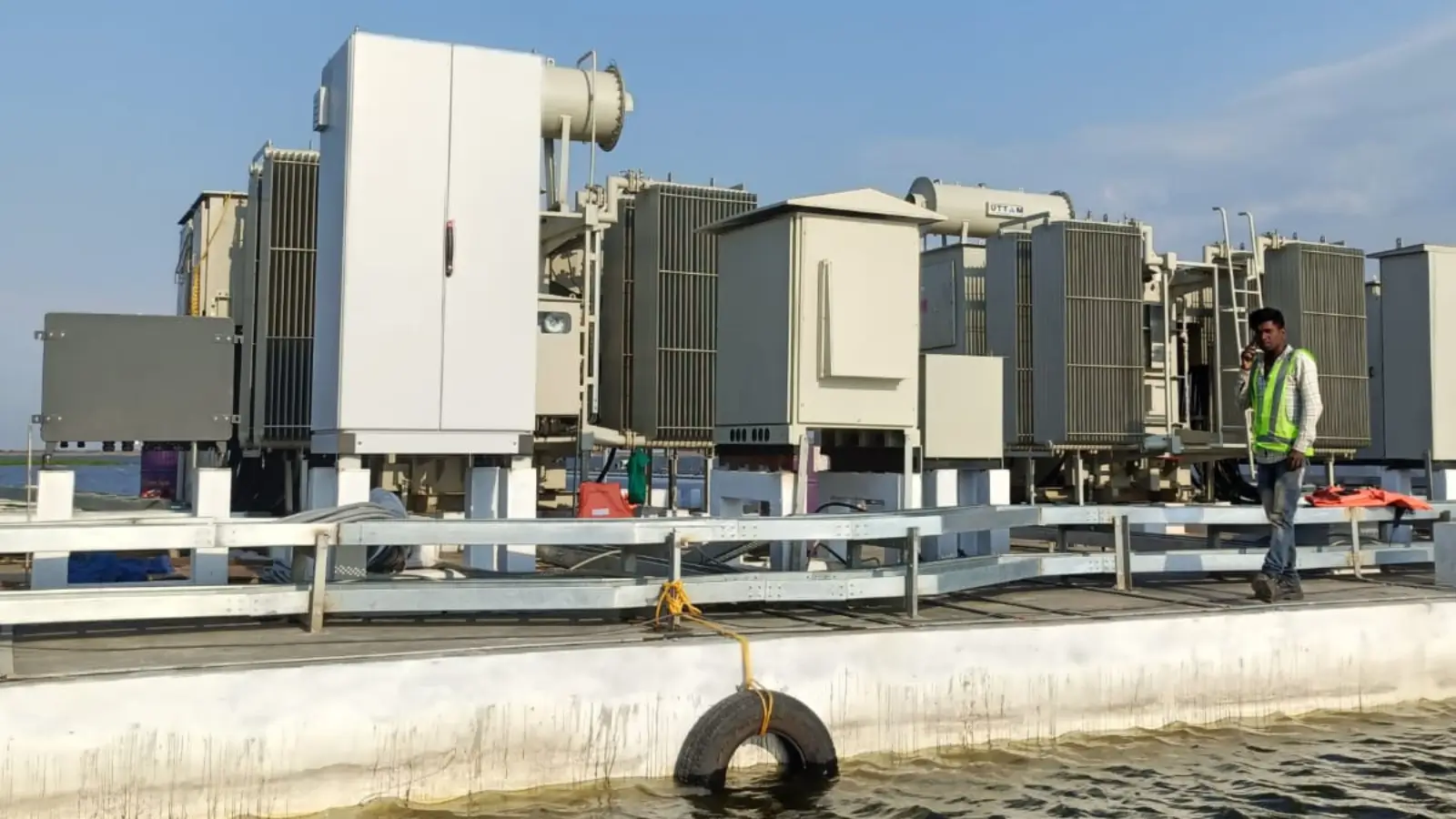

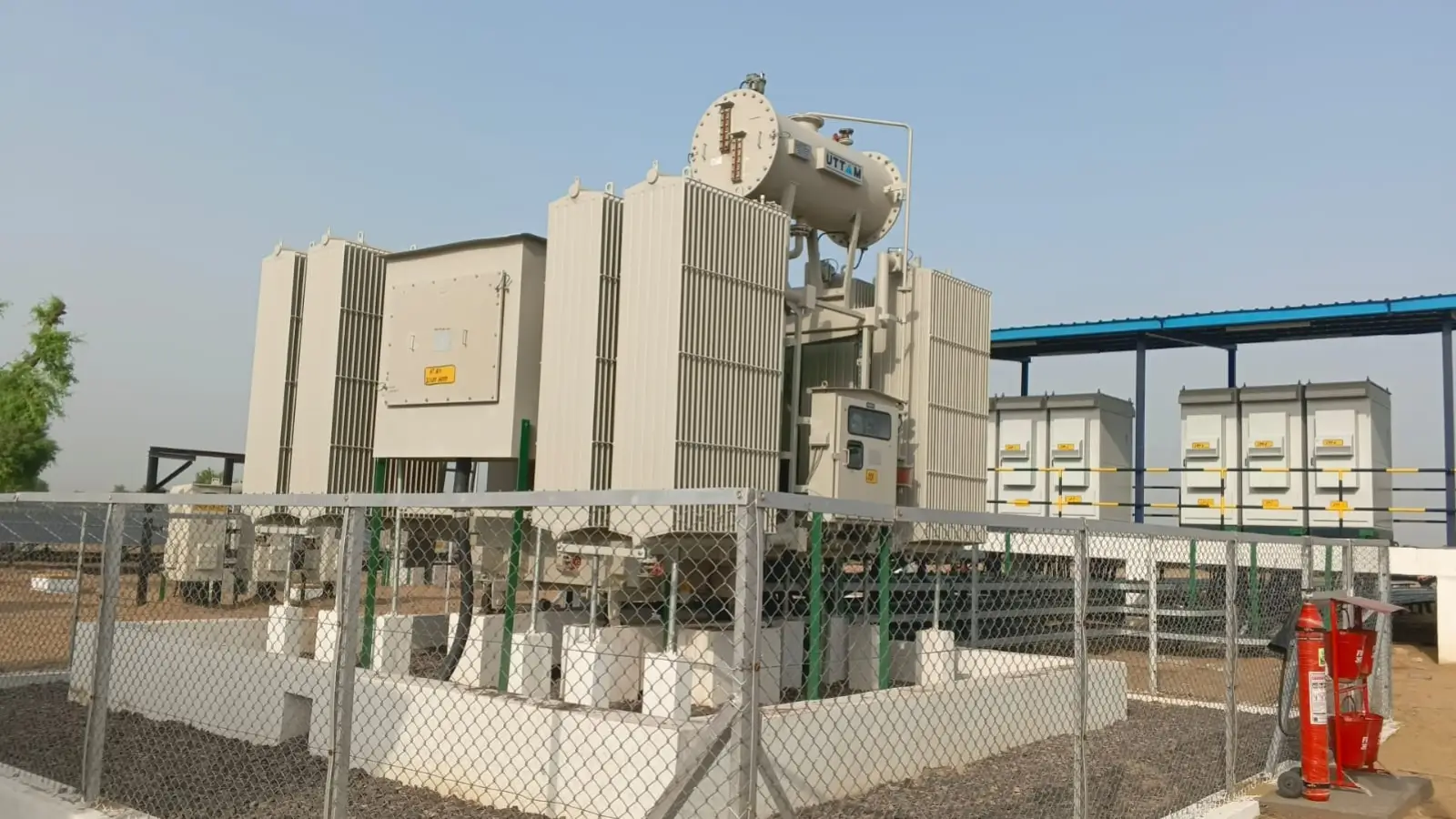

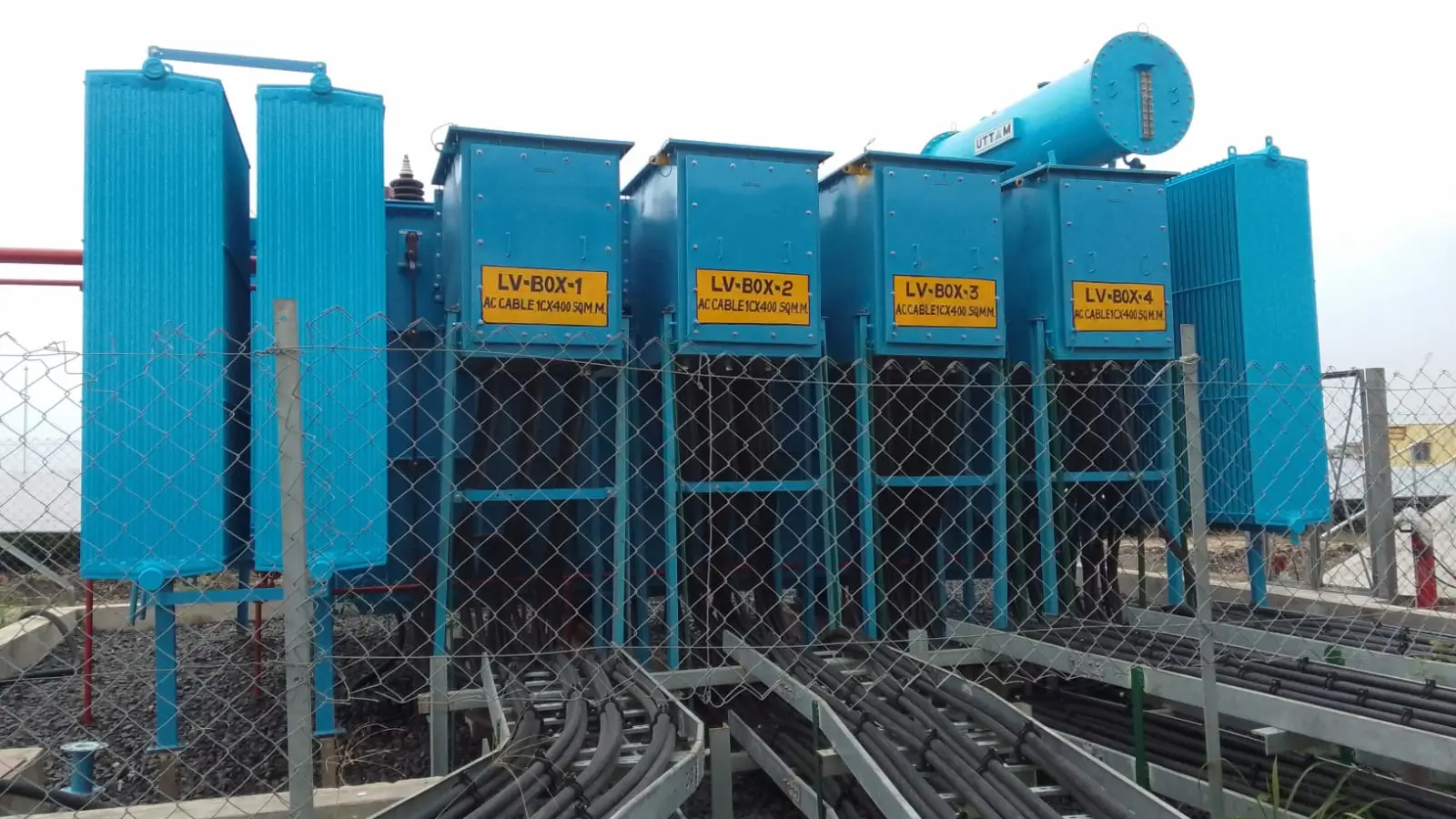

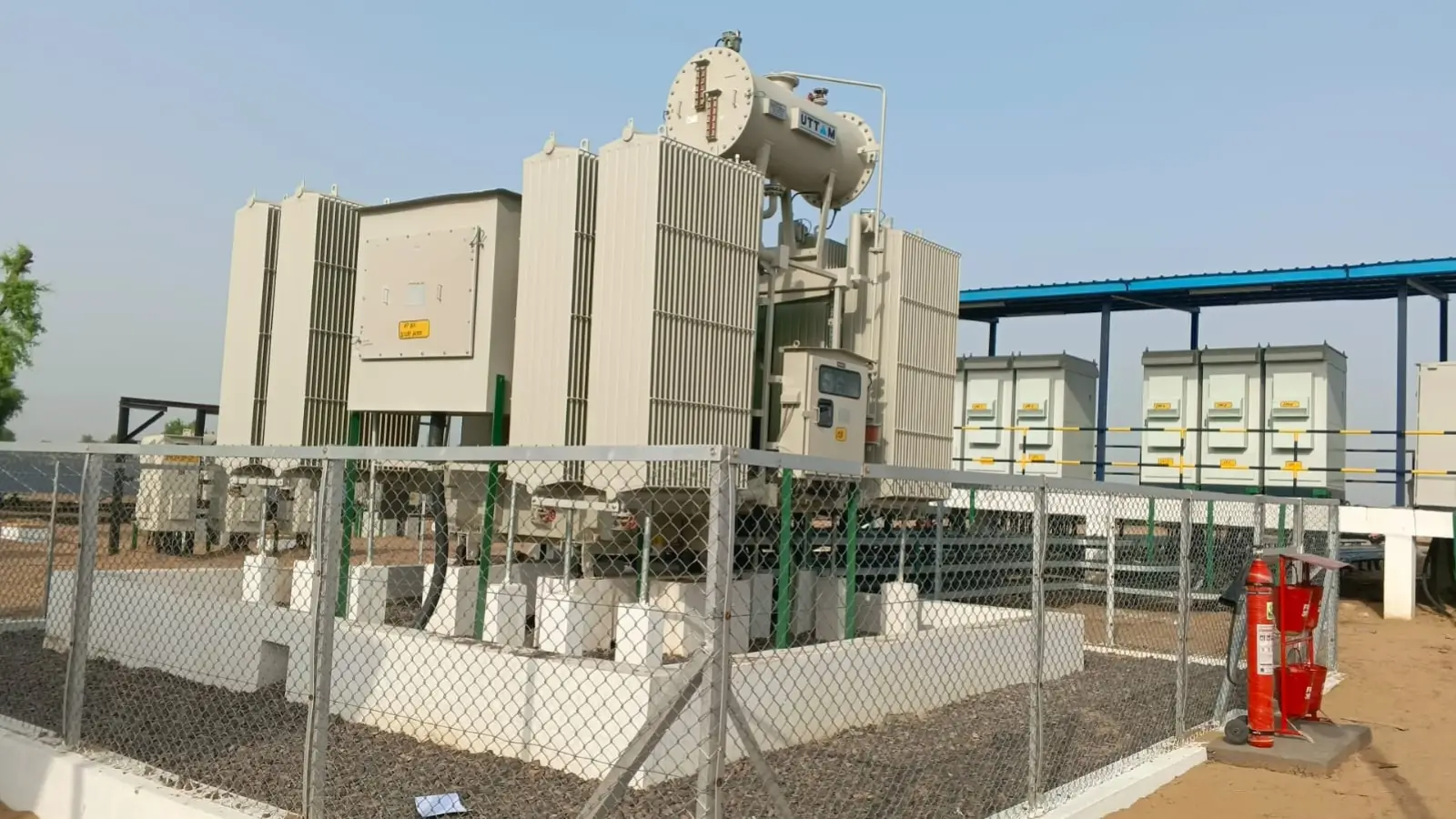

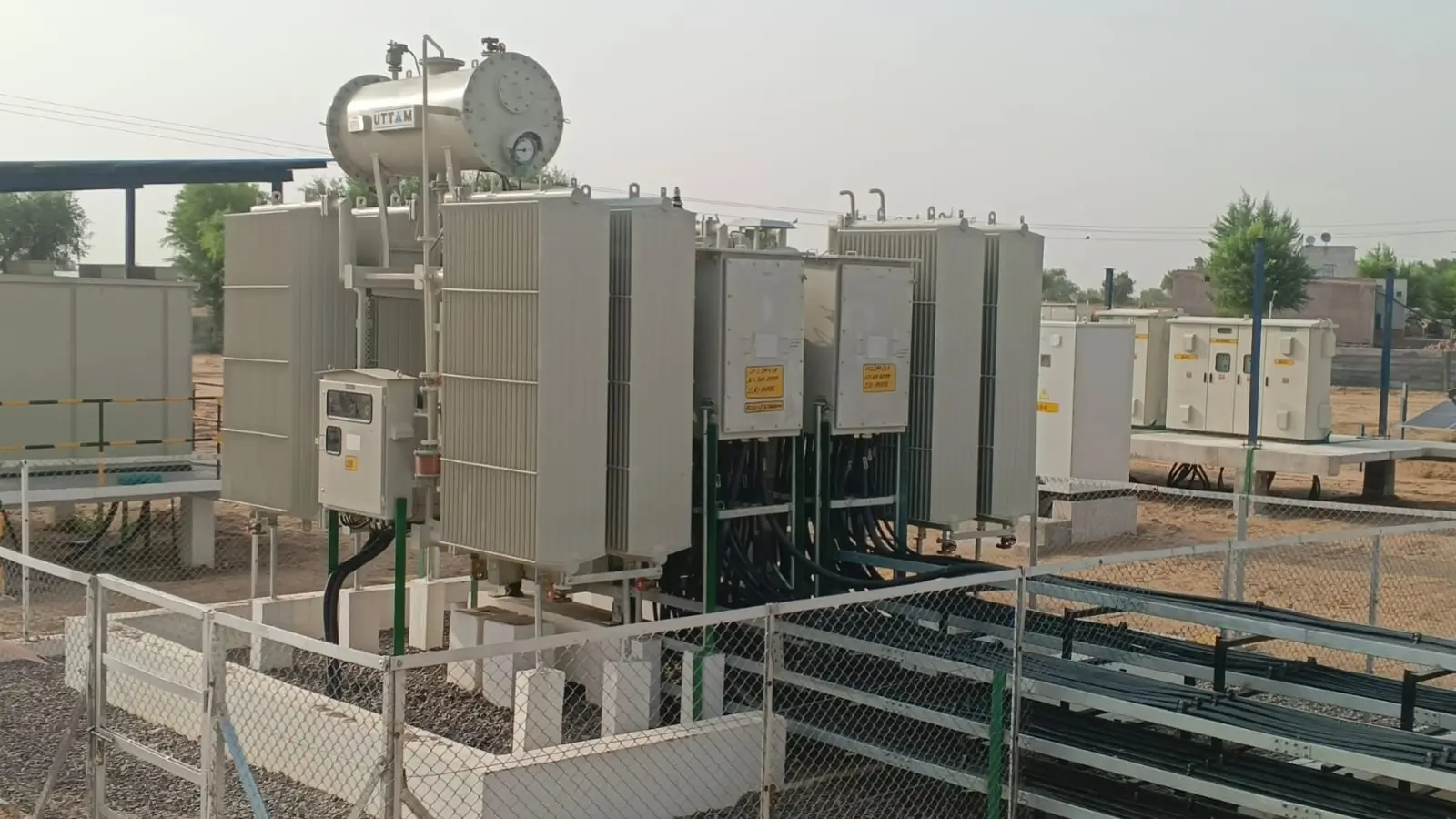

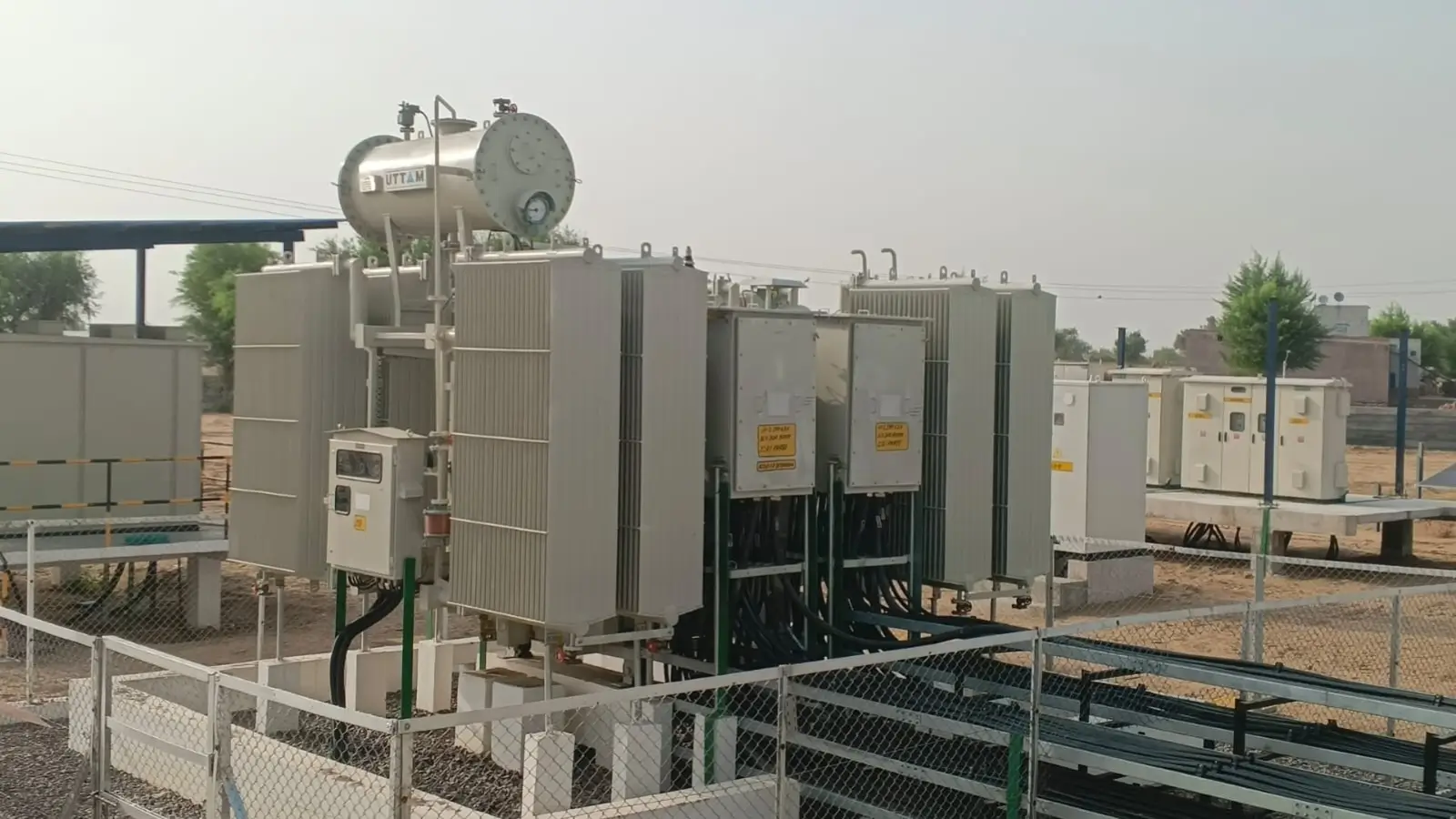

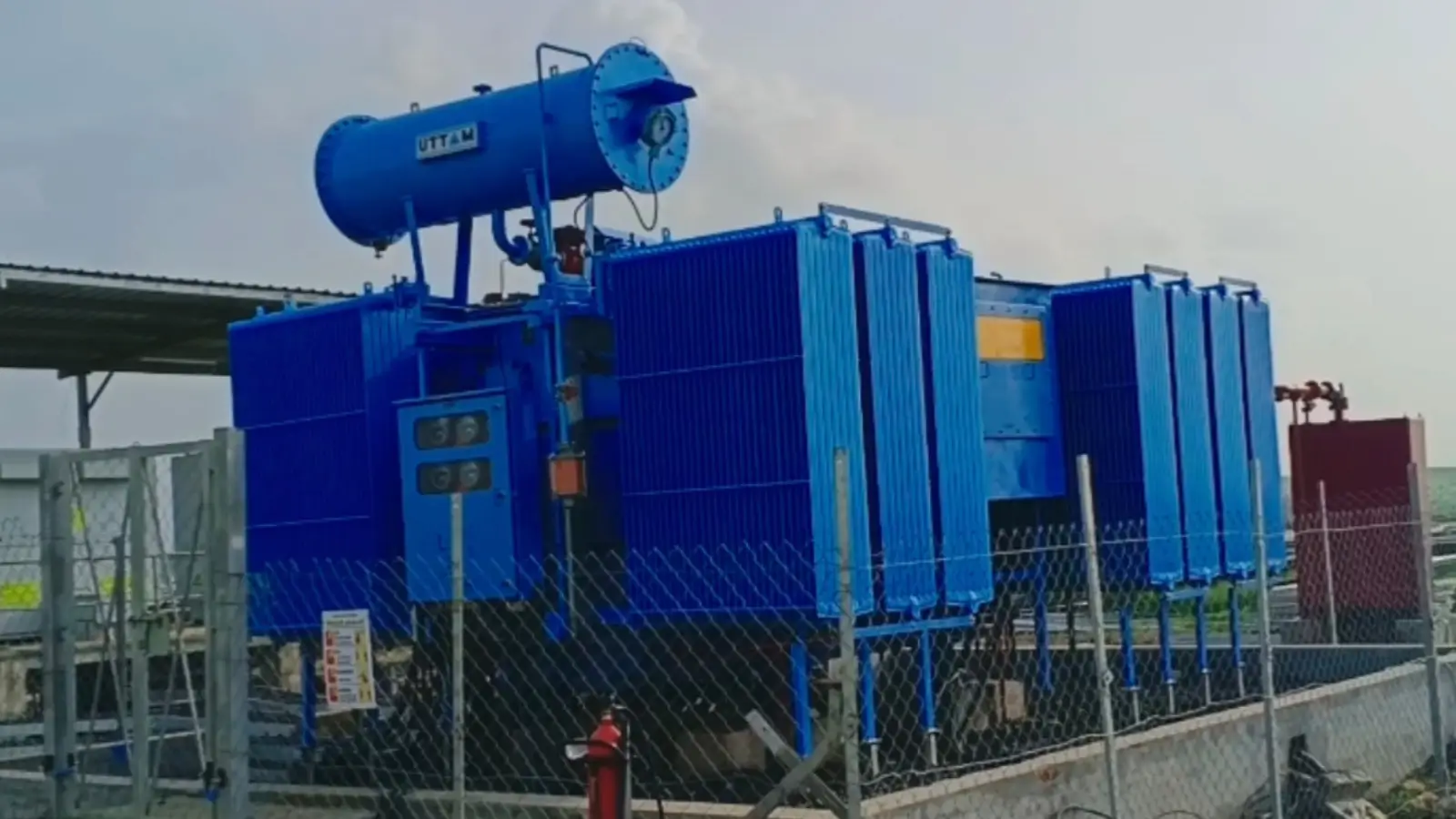

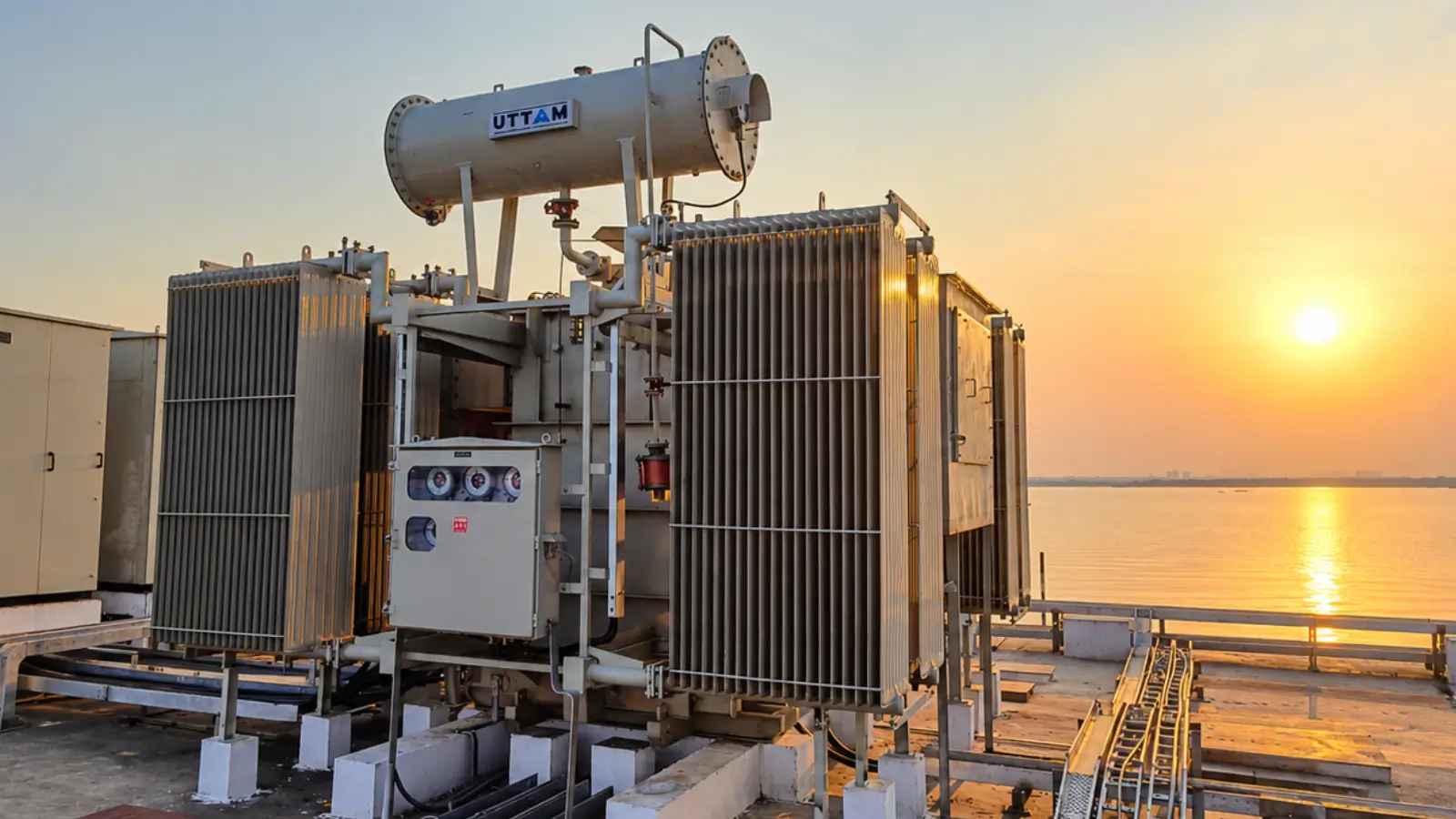

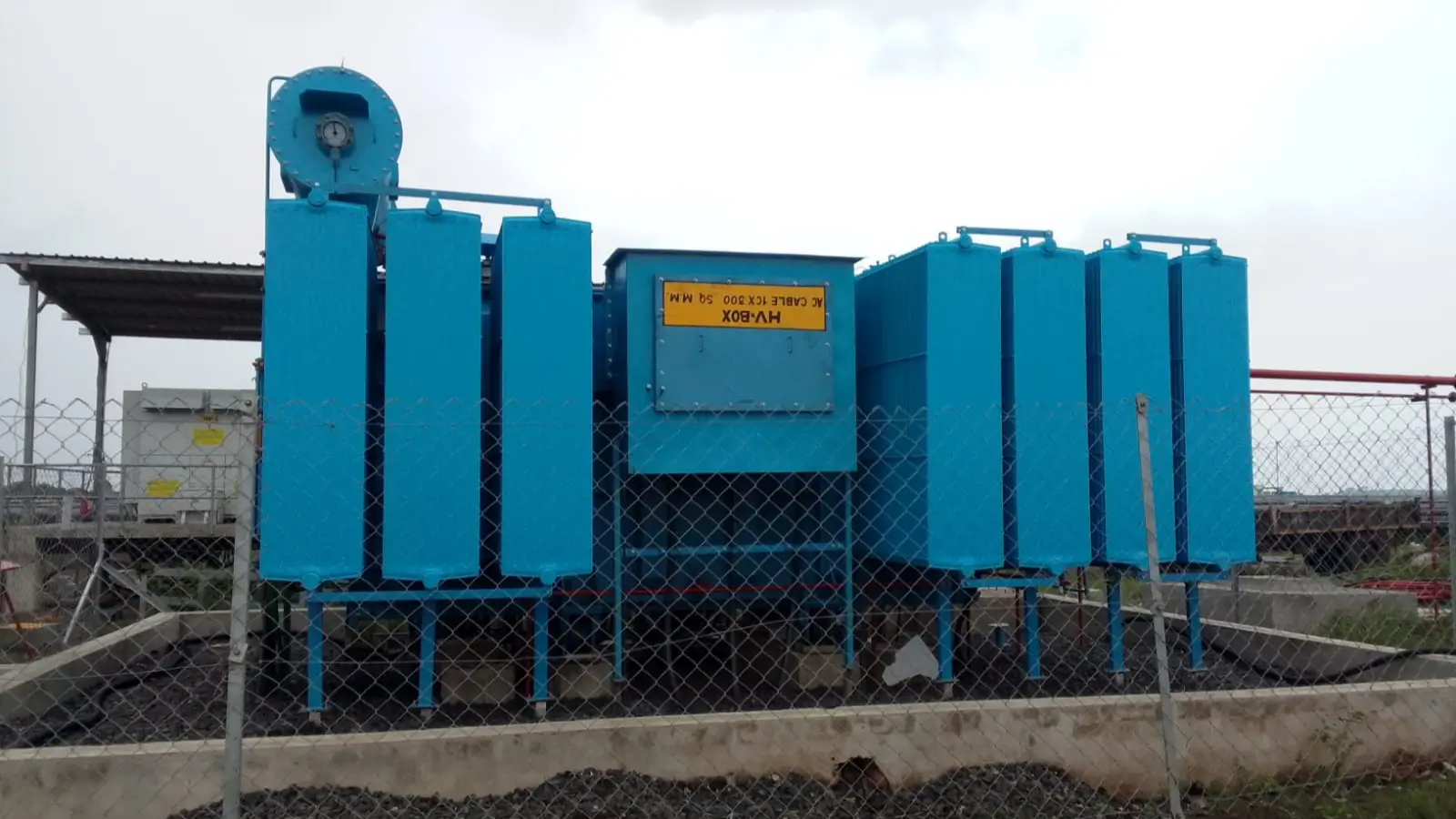

Our Installation
